    Products-Xinxin Ultrasound

    —— 客戶滿意是我們的追求 ——

    Customer satisfaction is our pursuit

    Fully automatic gantry ultrasonic cleaning system

    Release time:2025-6-11    Reading volume 21 second
    Reading guide:Fully automatic gantry ultrasonic cleaning system

    17194542153464750

    I
    ntroduction
    Detailed parameters


    The equipment is a fully automatic high cleanliness cleaning and drying machine, using ultrasonic cleaning technology. The whole machine is a truss type transmission mechanism, controlled by PLC+touch screen.

    The cleaning machine consists of loading and unloading, ultrasonic cleaning and rust removal, bubble rinsing, ultrasonic rough cleaning, ultrasonic fine cleaning, ultrasonic rinsing, spray rinsing, immersion rust prevention, super fan water cutting, internal circulation drying, demagnetization machine, machine body, liquid storage box, waterway conversion system, automatic control system, cleaning agent purification system, mist treatment system, sewage pump and electrical control system.

    There is a condensation device inside the equipment, which forms negative pressure inside the equipment to ensure that there is no water mist overflow. A car glass window is installed on the front of the equipment to facilitate the operator to visually observe the operation status of the equipment. After operation, the equipment is mainly pneumatic, with extremely low energy consumption and safe and reliable.

    The transmission gantry mechanism adopts servo motors for translation and walking, ensuring response speed and control accuracy.

    Installation method of the whole machine: foundation leveling installation.

    The equipment has good cleaning effect and improves the cleanliness of the workpiece. The machine has a reasonable structural design and process arrangement, high degree of automation, and high cleaning accuracy, effectively solving the cleaning problem of such workpieces.

    I
    ntroduction

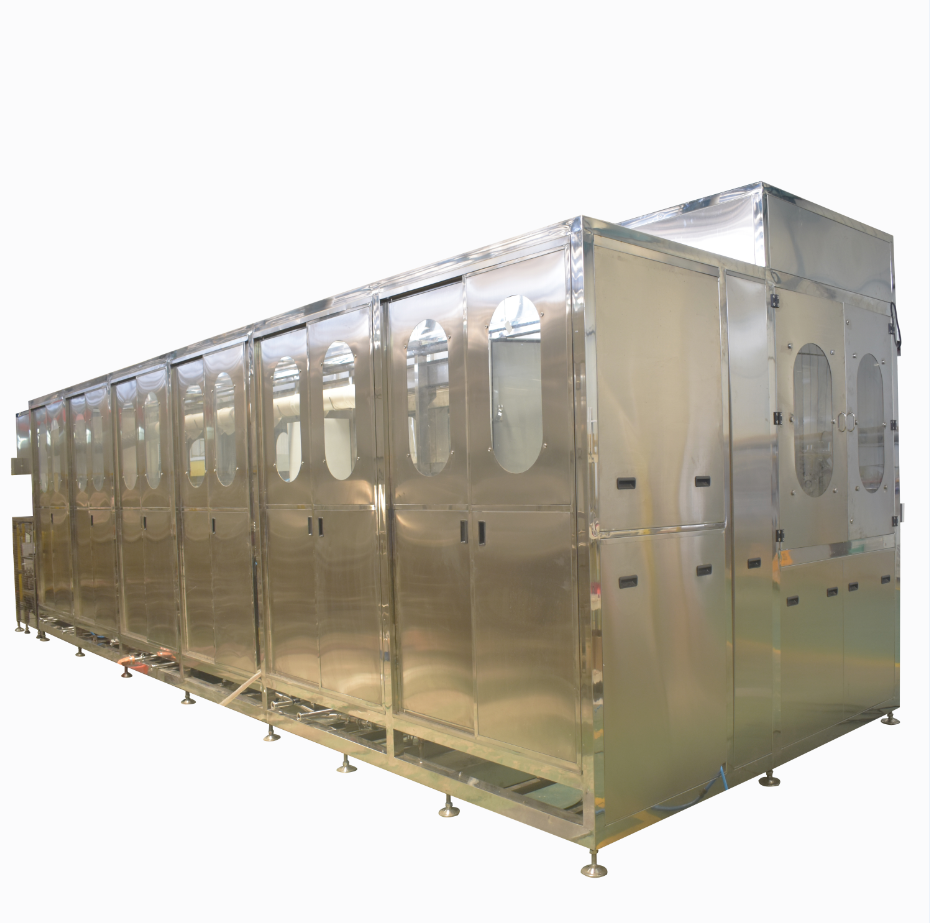

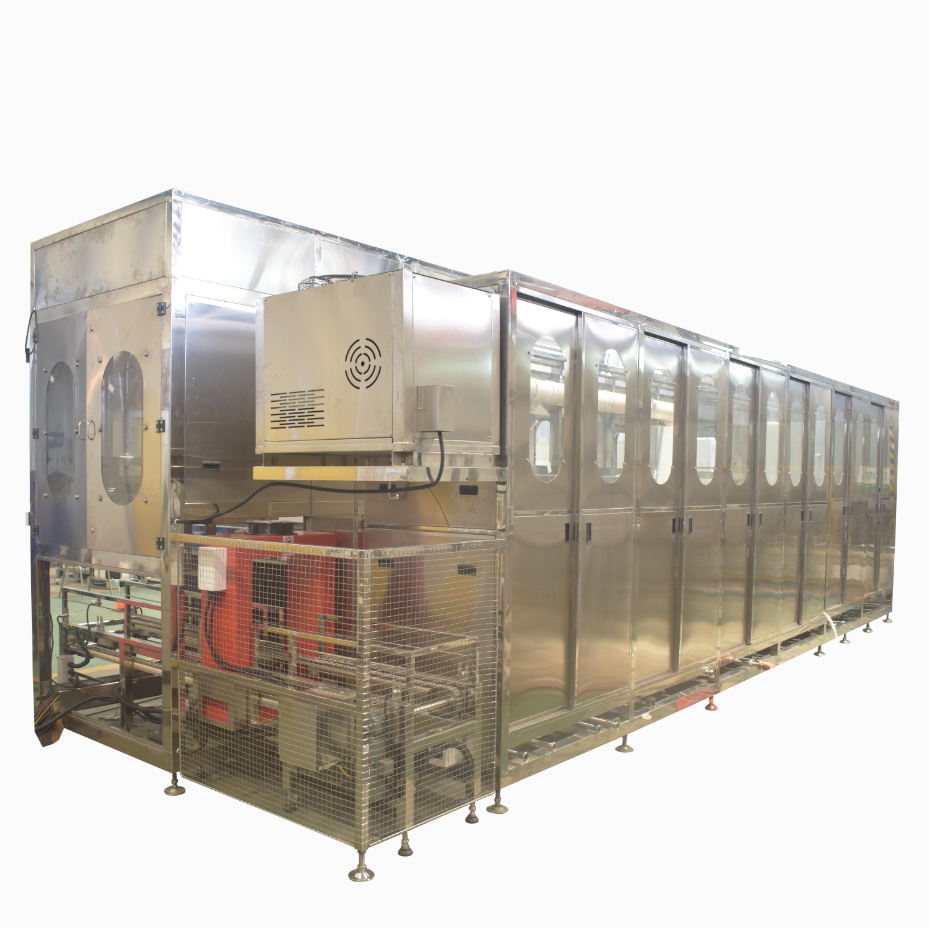

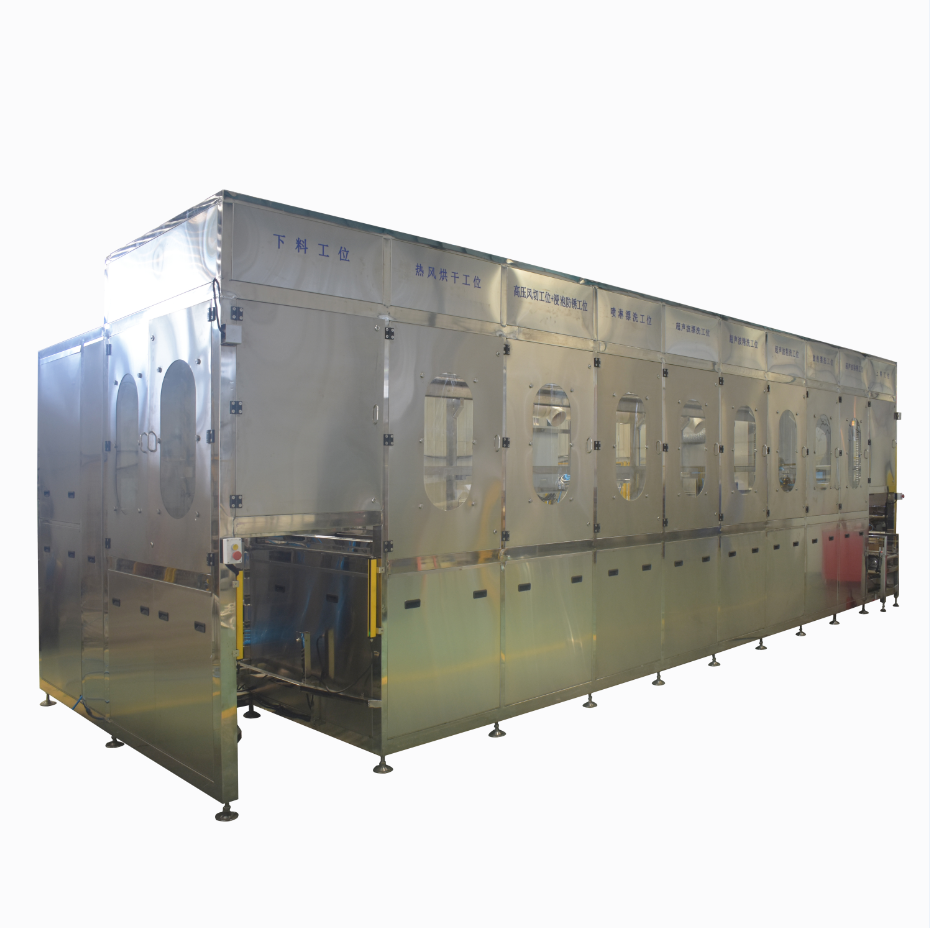

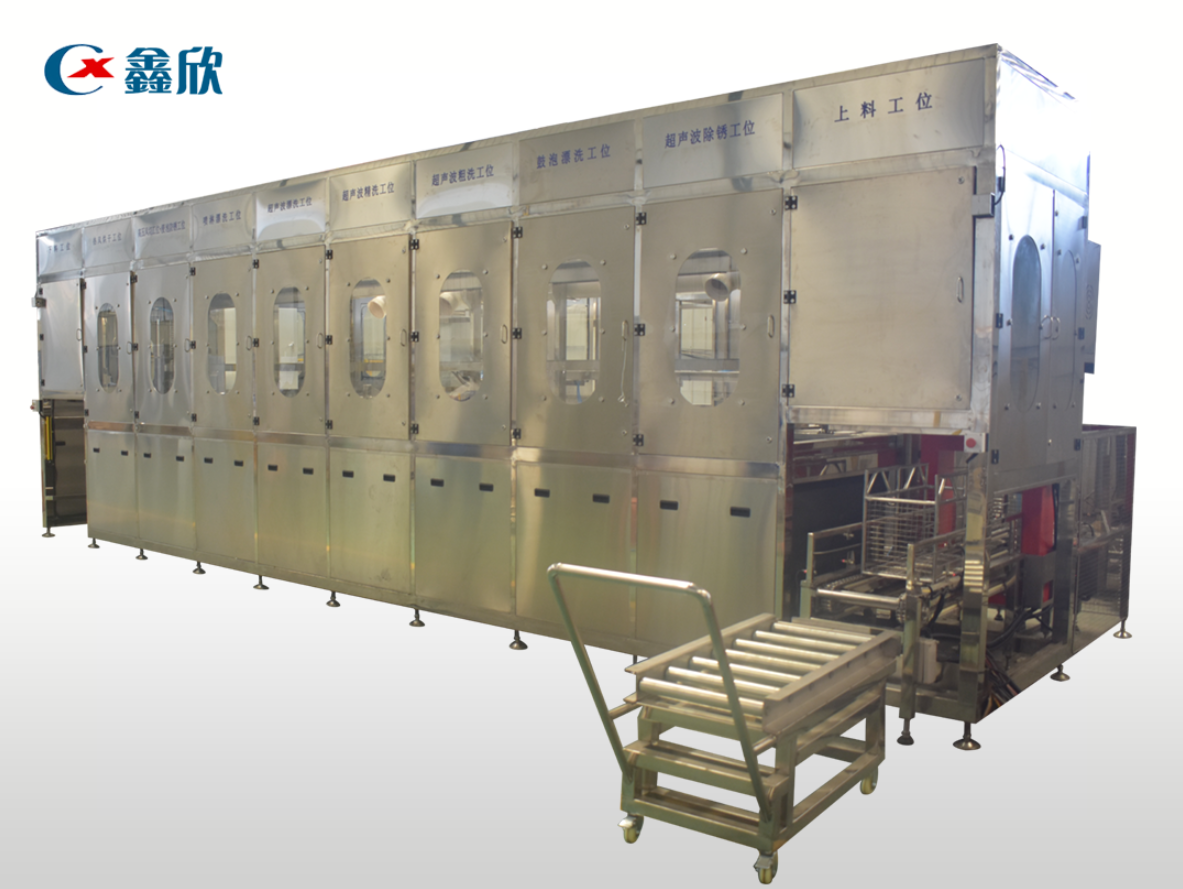

    Detailed display


    17194542559394072

    17194542691834378

    17194542836144865

    17194542954548551

    Fully automatic gantry ultrasonic cleaning system
